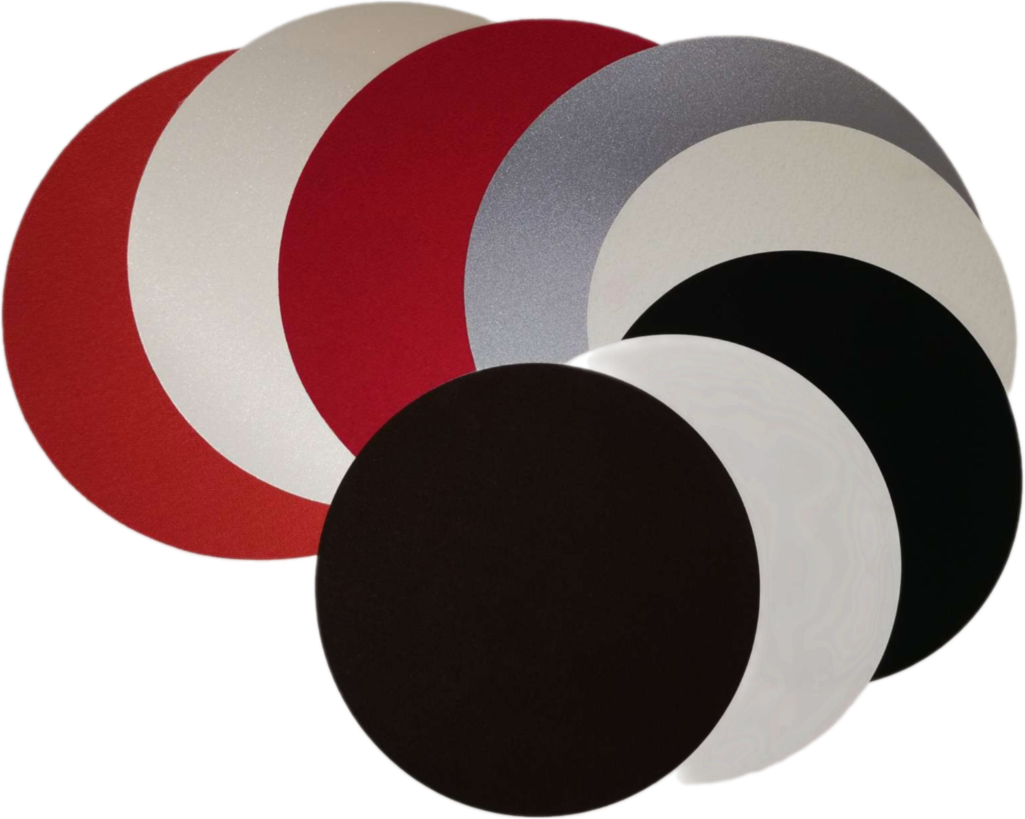

POLISHING CLOTHS
High-quality polishing cloths, soft and durable, designed to effectively clean and shine surfaces.
Features of polishing cloths
Polishing Cloths are Consumables for metallography by G&G Surface Technology – Made in Italy
- G&G manufactures a wide range of polishing cloths using custom-made, high-quality fabrics. Furthermore, all G&G cloths are backed with a Mylar barrier, which ensures perfect flatness and superior stability when coupled with the adhesive surface, thereby preventing any shrinkage or deformation of the cloth.
- In addition, the PSA version is equipped with a semi-permanent adhesive that allows the cloths to be easily removed from the working wheel. Moreover, the new and exclusive FASTICK™ system enables the cloths to be quickly and conveniently applied, removed, and repositioned on the working wheel.
- Finally, the Fastick™ base offers long-lasting durability and can also be easily re-activated simply by rinsing it with water.
Fixation System
CODE
ITEM
Q.TY
01.04.200.BASE.M
Base.M – Magnetic base Ø200
2 pcs
01.04.250.BASE.M
Base.M – Magnetic base Ø250
2 pcs
01.04.300.BASE.M
Base.M – Magnetic base Ø300
2 pcs
01.04.200.EZDISK
Easy stick’n’release disk for adhesive paper/cloths (to be used on magnetic base) Ø200
1 pcs
01.04.250.ESDISK
Easy stick’n’release disk for adhesive paper/cloths (to be used on magnetic base) Ø250
1 pc
01.04.300.EZDISK
Easy stick’n’release disk for adhesive paper/cloths (to be used on magnetic base) Ø300
1 pc
Types of Polishing Cloths
Polishing Cloths ø 200
CODE
ITEM
Q.TY
01.04.200.FLAT
FLAT – Woven acetate – For pre-polishing of ferrous materials, very high stock removal, excellent flatness. Recommended with 9μm to 3μm diamond slurry and diamond pastes
5pcs/1box
01.04.200.FAST
FAST – Satin Woven acetate – For pre-polishing of all materials, high stock removal,
excellent flatness,. Recommended with 6μm to 3μm diamond slurry.
5pcs/1box
01.04.200.KYO
KYO – Short nap – Flocked syntethic – For intermediate and final polishing of all ferrous materials. Recommended with 3μm to 1μm diamond slurry.
5pcs/1box
01.04.200.MIX
MIX – Non woven polyurethan – For single step polishing. Also suitable for intermediate and final polishing of composites, silicon wafers and crystals. Use with 6μm to 1 μm.
5pcs/1box
01.04.200.SNAP
SNAP – Short nap – Soft flocked syntethic – For final polishing of mild steel and soft ferrous materials. Recommended from 3μm to 0,5 μm diamond slurry.
5pcs/1box
01.04.200.OPTO
OPTO – Flocked syntethic – For final polishing of aluminum alloys, non-ferrous materials, glass and composites. Recommended with alumina 0,05/0,30/1,00 μm, colloidal silica.
5pcs/1box
01.04.200.STEP
STEP – Taffeta woven – For single step polishing. Also suitable for intermediate and final polishing of ferrous and non-ferrous metals and polymers Use with 6μm to 1 μm.
5pcs/1box
01.04.200.RED
RED – Woven wool felt. For final polishing. Recommended for 3 to 1μ diamond slurry.
5pcs/1box
01.04.200.KEMO
KEMO – For final polishing of non ferrous materials. Recommended with colloidal silica, fine alumina, oxide slurry and <1μm diamond slurry.
5pcs/1box
Polishing Cloths ø 250
CODE
ITEM
Q.TY
01.04.250.FLAT
FLAT – Woven acetate – For pre-polishing of ferrous materials, very high stock removal, excellent flatness. Recommended with 9μm to 3μm diamond slurry and diamond pastes
5pcs/1box
01.04.250.FAST
FAST – Satin Woven acetate – For pre-polishing of all materials, high stock removal,
excellent flatness,. Recommended with 6μm to 3μm diamond slurry.
5pcs/1box
01.04.250.KYO
KYO – Short nap – Flocked syntethic – For intermediate and final polishing of all ferrous materials. Recommended with 3μm to 1μm diamond slurry.
5pcs/1box
01.04.250.MIX
MIX – Non woven polyurethan – For single step polishing. Also suitable for intermediate and final polishing of composites, silicon wafers and crystals. Use with 6μm to 1 μm.
5pcs/1box
01.04.250.SNAP
SNAP – Short nap – Soft flocked syntethic – For final polishing of mild steel and soft ferrous materials. Recommended from 3μm to 0,5 μm diamond slurry.
5pcs/1box
01.04.250.OPTO
OPTO – Flocked syntethic – For final polishing of aluminum alloys, non-ferrous materials, glass and composites. Recommended with alumina 0,05/0,30/1,00 μm, colloidal silica.
5pcs/1box
01.04.250.STEP
STEP – Taffeta woven – For single step polishing. Also suitable for intermediate and final polishing of ferrous and non-ferrous metals and polymers Use with 6μm to 1μm.
5pcs/1box
01.04.250.RED
RED – Woven wool felt. For final polishing. Recommended for 3 to 1μ diamond slurry.
5pcs/1box
01.04.250.KEMO
KEMO – For final polishing of non ferrous materials. Recommended with colloidal silica, fine alumina, oxide slurry and <1μm diamond slurry.
5pcs/1box
Polishing Cloths ø 300
CODE
ITEM
Q.TY
01.04.300.FLAT
FLAT – Woven acetate – For pre-polishing of ferrous materials, very high stock removal, excellent flatness. Recommended with 9μm to 3μm diamond slurry and diamond pastes.
5pcs/1box
01.04.300.FAST
FAST- Satin Woven acetate – For pre-polishing of all materials, high stock removal,
excellent flatness,. Recommended with 6μm to 3μm diamond slurry.
5pcs/1box
01.04.300.KYO
KYO – Short nap – Flocked syntethic – For intermediate and final polishing of all ferrous materials. Recommended with 3μm to 1μm diamond slurry.
5pcs/1box
01.04.300.MIX
MIX – Non woven polyurethan – For single step polishing. Also suitable for intermediate and final polishing of composites, silicon wafers and crystals. Use with 6μm to 1μm.
5pcs/1box
01.04.300.SNAP
SNAP – Short nap – Soft flocked syntethic – For final polishing of mild steel and soft ferrous materials. Recommended from 3μm to 0,5μm diamond slurry.
5pcs/1box
01.04.300.OPTO
OPTO – Flocked syntethic – For final polishing of aluminum alloys, non-ferrous materials, glass and composites. Recommended with alumina 0,05/0,30/1,00μm, colloidal silica.
5pcs/1box
01.04.300.STEP
STEP – Taffeta woven – For single step polishing. Also suitable for intermediate and final polishing of ferrous and non-ferrous metals and polymers Use with 6μm to 1μm.
5pcs/1box
01.04.300.RED
RED – Woven wool felt. For final polishing. Recommended for 3 to 1μ diamond slurry.
5pcs/1box
01.04.300.KEMO
KEMO – For final polishing of non ferrous materials. Recommended with colloidal silica, fine alumina, oxide slurry and <1μm diamond slurry.
5pcs/1box
Polishing Cloths FASTICK™
Polishing Cloths FASTICK™ ø 200
CODE
ITEM
Q.TY
01.04.200.BASE
PSA Base for FASTICKTM System. To be applied to the working wheel.
1pc/1box
01.04.300.FAST
FLAT – Woven acetate – For pre-polishing of ferrous materials, very high stock removal, excellent flatness. Recommended with 9μm to 3μm diamond slurry and diamond pastes.
5pcs/1box
01.04.200.FLAT.R
FAST- Satin Woven acetate – For pre-polishing of all materials, high stock removal,
excellent flatness. Recommended with 6μm to 3μm diamond slurry.
5pcs/1box
01.04.200.FAST.R
KYO – Short nap – Flocked syntethic – For intermediate and final polishing of all ferrous materials. Recommended with 3μm to 1μm diamond slurry.
5pcs/1box
01.04.200.KYO.R
MIX – Non woven polyurethan – For single step polishing. Also suitable for intermediate and final polishing of composites, silicon wafers and crystals. Use with 6μm to 1μm.
5pcs/1box
01.04.200.MIX.R
SNAP – Short nap – Soft flocked syntethic – For final polishing of mild steel and soft ferrous materials. Recommended from 3μm to 0,5μm diamond slurry.
5pcs/1box
01.04.200.SNAP.R
OPTO – Flocked syntethic – For final polishing of aluminum alloys, non-ferrous materials, glass and composites. Recommended with alumina 0,05/0,30/1,00μm, colloidal silica.
5pcs/1box
01.04.200.OPTO.R
STEP – Taffeta woven – For single step polishing. Also suitable for intermediate and final polishing of ferrous and non-ferrous metals and polymers Use with 6μm to 1μm.
5pcs/1box
01.04.200.RED.R
RED – Woven wool felt. For final polishing. Recommended for 3 to 1μ diamond slurry.
5pcs/1box
01.04.200.KEMO.R
KEMO – For final polishing of non ferrous materials. Recommended with
colloidal silica, fine alumina, oxide slurry and <1μm diamond slurry.
5pcs/1box
Polishing Cloths FASTICK™ ø 250
CODE
ITEM
Q.TY
01.04.250.BASE
PSA Base for FASTICKTM System. To be applied to the working wheel.
1pc/1box
01.04.250.FLAT.R
FLAT – Woven acetate – For pre-polishing of ferrous materials, very high stock removal, excellent flatness. Recommended with 9μm to 3μm diamond slurry and diamond pastes.
5pcs/1box
01.04.250.FAST.R
FAST- Satin Woven acetate – For pre-polishing of all materials, high stock removal,
excellent flatness,. Recommended with 6μm to 3μm diamond slurry.
5pcs/1box
01.04.250.KYO.R
KYO – Short nap – Flocked syntethic – For intermediate and final polishing of all ferrous materials. Recommended with 3μm to 1μm diamond slurry.
5pcs/1box
01.04.250.MIX.R
MIX – Non woven polyurethan – For single step polishing. Also suitable for intermediate and final polishing of composites, silicon wafers and crystals. Use with 6μm to 1μm.
5pcs/1box
01.04.250.SNAP.R
SNAP – Short nap – Soft flocked syntethic – For final polishing of mild steel and soft ferrous materials. Recommended from 3μm to 0,5 μm diamond slurry.
5pcs/1box
01.04.250.OPTO.R
OPTO – Flocked syntethic – For final polishing of aluminum alloys, non-ferrous materials, glass and composites. Recommended with alumina 0,05/0,30/1,00μm, colloidal silica.
5pcs/1box
01.04.250.STEP.R
STEP – Taffeta woven – For single step polishing. Also suitable for intermediate and final polishing of ferrous and non-ferrous metals and polymers Use with 6μm to 1μm.
5pcs/1box
01.04.250.RED.R
RED – Woven wool felt. For final polishing. Recommended for 3 to 1μ diamond slurry.
5pcs/1box
01.04.250.KEMO.R
KEMO – For final polishing of non ferrous materials. Recommended with
colloidal silica, fine alumina, oxide slurry and <1μm diamond slurry.
5pcs/1box
Polishing Cloths FASTICK™ ø 300
CODE
ITEM
Q.TY
01.04.300.BASE
PSA Base for FASTICKTM System. To be applied to the working wheel.
1pc/1box
01.04.300.FLAT.R
FLAT – Woven acetate – For pre-polishing of ferrous materials, very high stock removal, excellent flatness. Recommended with 9μm to 3μm diamond slurry and diamond pastes.
5pcs/1box
01.04.300.FAST.R
FAST- Satin Woven acetate – For pre-polishing of all materials, high stock removal,
excellent flatness,. Recommended with 6μm to 3μm diamond slurry.
5pcs/1box
01.04.300.KYO.R
KYO – Short nap – Flocked syntethic – For intermediate and final polishing of all ferrous materials. Recommended with 3μm to 1μm diamond slurry.
5pcs/1box
01.04.300.MIX.R
MIX – Non woven polyurethan – For single step polishing. Also suitable for intermediate and final polishing of composites, silicon wafers and crystals. Use with 6μm to 1μm.
5pcs/1box
01.04.300.SNAP.R
SNAP – Short nap – Soft flocked syntethic – For final polishing of mild steel and soft ferrous materials. Recommended from 3um to 0,5μm diamond slurry.
5pcs/1box
01.04.300.OPTO.R
OPTO – Flocked syntethic – For final polishing of aluminum alloys, non-ferrous materials, glass and composites. Recommended with alumina 0,05/0,30/1,00μm, colloidal silica.
5pcs/1box
01.04.300.STEP.R
STEP – Taffeta woven – For single step polishing. Also suitable for intermediate and final polishing of ferrous and non-ferrous metals and polymers Use with 6μm to 1μm.
5pcs/1box
01.04.300.RED.R
RED – Woven wool felt. For final polishing. Recommended for 3 to 1μ diamond slurry.
5pcs/1box
01.04.300.KEMO.R
KEMO – For final polishing of non ferrous materials. Recommended with
colloidal silica, fine alumina, oxide slurry and <1μm diamond slurry.
5pcs/1box
Polishing Cloths Guide
NAME
COMPOSITION
ABRAVISE
APPLICATION
FLAT
Woven acetate
Diamond 9μ/3μ
Fine grinding and pre-polishing of Ferrous metals, non ferrous metals,coatings and plastics
FAST
Woven acetate
Diamond 6μ/1μ
Universal pre-polishing of all materials
FAP
Synthetic nap
Diamond 3μ/1μ
Alumina <3μ
Final polishing of all materals
FLUX
Synthetic nap
Diamond 3μ/1μ
Alumina <3μ
Final polishing for sintered carbides and steels
KEMO
Neoprene
Colloidal silica
Alumina <3μ
Chemo-mechanical polishing of all oxide slurries ≤ 1μ materials, recommended as a final diamond ≤ 1μ polishing step of non ferrous materials
MIX
Tnt
Diamond 6μ/1μ
Final polishing of materials
